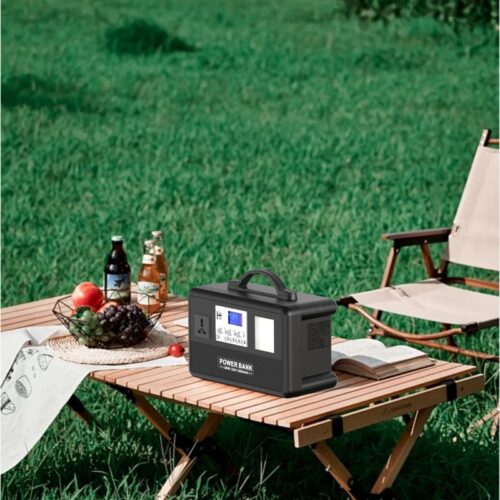

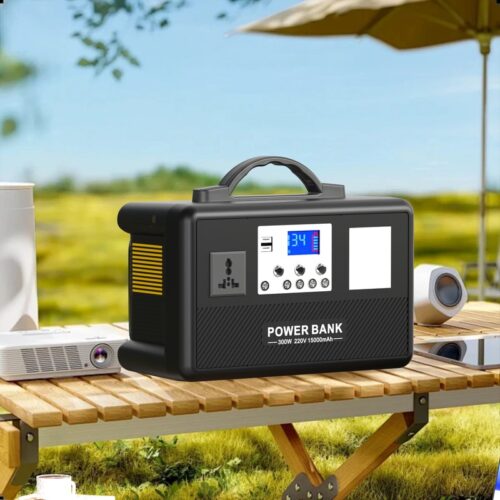

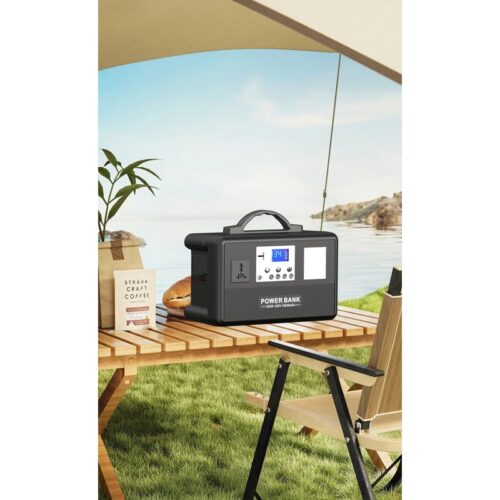

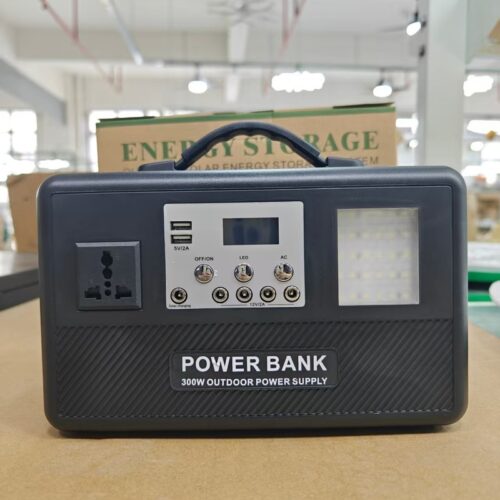

C801-300W Portable Power Station
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Beschreibung
| Parameterkategorie | Parameterbezeichnung | Spezifikation |
|---|---|---|
| Grundlegende Informationen | Produktname | Wall-mounted Shared Portable Energy Storage Power Supply 300W |
| Grundlegende Informationen | Modell | C801-300W |
| Grundlegende Informationen | Produktübersicht | Shared portable power bank, chargeable via designated charging cabinet or user adapter; built-in Micro, Type-C and Lightning interfaces, compatible with all smartphones and 3C digital devices. Users can rent a fully charged power bank to charge their phones anytime and anywhere when the battery is low |
| Grundlegende Informationen | Core Function | Floodlight + 12V/5V/220V Output Inverter |
| Batterieparameter | Zelltyp | Lithium-Batterie |
| Batterieparameter | Zellmodell | 33140 / 26700 |
| Batterieparameter | Marke „Cell“ | Gotion High-Tech |
| Batterieparameter | Nennkapazität | 15A |
| Batterieparameter | Mindestkapazität | 15A |
| Batterieparameter | Lebensdauer | ≥1000 Zyklen (Kapazitätserhaltungsrate ≥80%) |
| Batterieparameter | Zellzertifizierung | Sicherheitsdatenblatt / UN-Nummer / Gutachten zum Seetransport |
| Batterieparameter | Produktzertifizierung | UN38 Marine Transportation Report (Battery Section) |
| Eingabe- und Ausgabeparameter | Ladespannung | 14.6V (Adapter DC14.6V); Solar Panel DC18V |
| Eingabe- und Ausgabeparameter | Ladeanschluss | 1× 14.6V Charging Port (Max 5A) |
| Eingabe- und Ausgabeparameter | Charging Current (Battery Level ≤25%) | 1–5A |
| Eingabe- und Ausgabeparameter | Charging Current (26% < Battery Level ≤50%) | 1,5–2,0 A |
| Eingabe- und Ausgabeparameter | Charging Current (51% < Battery Level ≤75%) | 1,6–2,0 A |
| Eingabe- und Ausgabeparameter | Charging Current (76% < Battery Level ≤100%) | 0,5–1,0 A |
| Eingabe- und Ausgabeparameter | Ausgangsanschlüsse | 1× 220V Output Port; 4× 12V2A Output Ports; 2× 5V2A USB Output Ports; 1× 12V Charging Port; 1× DC18V Solar Charging Port |
| Eingabe- und Ausgabeparameter | USB Output Overcurrent Protection | Overcurrent Threshold 2A; Output exceeds threshold within 3s, LED flashes rapidly then turns off, output shuts down; can be reactivated by charging after overcurrent is removed |
| Eingabe- und Ausgabeparameter | Kurzschlussschutz | When output is short-circuited, LED flashes rapidly then turns off, output shuts down; can be restored by pressing the button or charging after fault is removed |
| Elektrische Parameter | Überspannungsschutzspannung | 3,65 V ± 40 mV |
| Elektrische Parameter | Entladungsspannung bei Überentladung | 2,8 V ± 0,1 V |
| Elektrische Parameter | Spannung des Überentladungsschutzes | 2,8 V ± 0,1 V |
| Elektrische Parameter | Innenwiderstand | ≤ 20 mΩ |
| Elektrische Parameter | Selbstentladungsstrom | 25–60 µA |
| Elektrische Parameter | Standby Power Consumption | 60 µA |
| Elektrische Parameter | No-load Static Power Consumption | 19mA (Power-on Status) |
| Elektrische Parameter | Wirkungsgrad der Energieumwandlung | 85% |
| Elektrische Parameter | No-load Output Voltage (Micro/Type-C/Lightning) | 4,75 V–5,25 V |
| Elektrische Parameter | On-load Output Voltage (Micro CC=2.4A) | 4,75 V–5,25 V (Leitungsspannung) |
| Elektrische Parameter | On-load Output Voltage (Type-C CC=3.5A) | 4,75 V–5,25 V (Leitungsspannung) |
| Elektrische Parameter | On-load Output Voltage (Lightning CC=2.4A) | 4,75 V–5,25 V (Leitungsspannung) |
| Mechanische Parameter | Product Dimensions | 281319cm (LWH) |
| Mechanische Parameter | Gehäusematerial | ABS |
| Mechanische Parameter | Flammschutzklasse | V3 |
| Mechanische Parameter | Produktgewicht | 2.8KG |
| Umgebungsparameter | Operating Temperature Range | 0 bis 45 °C |
| Umgebungsparameter | Storage Temperature Range | -10～50℃ for less than 1 month; -10～40℃ for less than 3 months; -10～40℃ for less than 6 months |
| Umgebungsparameter | Operating Humidity Range | <75% RH |
| Umgebungsparameter | Storage Humidity Range | <75% RH |
| Umgebungsparameter | Ladeschutz bei hohen Temperaturen | 50 °C |
| Umgebungsparameter | Ladevorgang bei hohen Temperaturen – Rückgewinnung | 45 °C |
| Umgebungsparameter | Ladeschutz bei niedrigen Temperaturen | 0 °C |
| Umgebungsparameter | Ladevorgang bei niedrigen Temperaturen | 5 °C |
| Umgebungsparameter | Entladung des Hochtemperaturschutzes | 60 °C |
| Umgebungsparameter | Entladung bei Hochtemperatur-Rückgewinnung | 50 °C |
| Umgebungsparameter | Entladung des Niedrigtemperaturschutzes | -20 °C |
| Umgebungsparameter | Entladung bei niedriger Temperatur – Rückgewinnung | -10 °C |
| Schutzfunktionen | Überladeschutz | ✅ |
| Schutzfunktionen | Überentladungsschutz | ✅ |
| Schutzfunktionen | Überstromschutz | ✅ |
| Schutzfunktionen | Kurzschlussschutz | ✅ |
| Schutzfunktionen | Over-temperature Protection (Charging & Discharging) | ✅ |
| Schutzfunktionen | Low Temperature Protection (Charging & Discharging) | ✅ |
| LED & Functional Parameters | LED Floodlight Power | 12W |
| LED & Functional Parameters | LED Floodlight Independent Usage Time | Over 10 hours |
| LED & Functional Parameters | 220V Output Discharge Duration | 30~45 minutes |
| Battery Level & Charging Indicator | Charging Indicator Status (Power-off) | Incremental flashing during charging; solid on when fully charged |
| Battery Level & Charging Indicator | Battery Level Display (0% / No Power) | 0 leuchtende Balken |
| Battery Level & Charging Indicator | Battery Level Display (20%) | 1 Balken leuchtet |
| Battery Level & Charging Indicator | Battery Level Display (40%) | 2 Balken leuchten |
| Battery Level & Charging Indicator | Battery Level Display (60%) | 3 Balken leuchten |
| Battery Level & Charging Indicator | Battery Level Display (80%) | 4 Balken leuchten |
| Battery Level & Charging Indicator | Battery Level Display (100% / Full Power) | 5 Balken leuchten |
| Warranty & Service | Garantiezeitraum | 1 Jahr ab Kaufdatum |
| Warranty & Service | Warranty Exclusions | Unauthorized repair, misuse, collision, negligence, abuse, liquid ingress, accident, modification, use of non-original accessories, defaced/removed labels/serial numbers/anti-counterfeiting marks; expired warranty period; force majeure damage; man-made quality issues |
| Safety Warnings | Core Safety Precautions | 1. Do not damage the battery with sharp objects; 2. Do not immerse the power bank in water or seawater; 3. Do not use or place near high temperature sources such as fire or heaters; 4. Do not reverse the positive and negative poles; 5. Do not charge with unknown power sockets or uncertain equipment; 6. Do not transport or store with metal objects such as hairpins or necklaces; 7. Do not hit, throw or step on the power bank; 8. Do not pierce the power bank with nails or other sharp tools; 9. Do not replace the cell without authorization; 10. Stop using immediately if there is peculiar smell, heat, discoloration, deformation or other abnormalities; 11. Do not use or place in high temperature environments such as direct sunlight or hot cars; 12. Do not disassemble the shell without authorization; 13. Do not disassemble, squeeze, pierce, short circuit the product, or put it into water, fire or environment above 60℃ |
